For model Digital Monitoring Series CD-65DX CD65DX A /AB /F /N /NB /TB, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1987–1989 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 100; 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Digital Monitoring Series CD-65DX CD65DX A /AB /F /N /NB /TB - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 85 x 300 mm / 16.5 x 3.3 x 11.8 inch
Notes

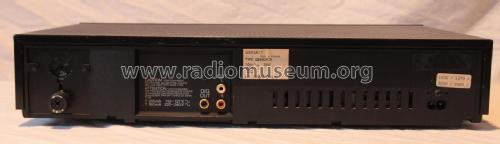

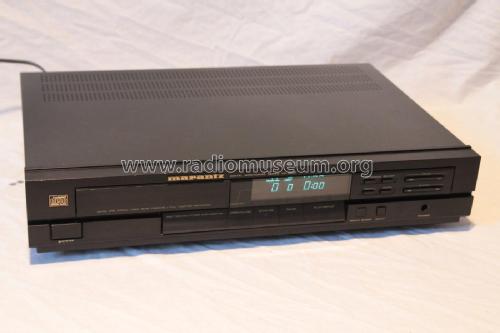

A hi-fi stereo compact disc player with infrared remote control housed in a black or champagne gold metal case. Philips CDM-2/10 or CDM-4/11 CD mechanism, TDA1541/N5 dual DAC with 4 times oversampling and SAA7220 digital filter. With Direct access to 99 tracks, random access memory for 20 track programming, Repeat and Recall. With a jack for headphones, RCA phono sockets for Line Output and for coaxial Digital Output.

Specification
SystemCompact Disc Digital Audio system
Frequency range20Hz-20kHz ±0.1dB
S/N ratio≥ 96dB
Channel separation≥ 90dB
Channel difference≤ 0.2dB
Total harmonic distortion≤ -90dB
Intermodulation distortion≤ -90dB
Output voltagemax. 2VRMS />10kΩ
Output impedance200Ω
Digital outputcoaxial (SPDIF)

Versions/Power requirements
110, 127, 220, 240V ±10% AC 50/60Hz with voltage selector
/F 100V AC 50/60Hz (Japan)

Power consumption    25 Watts

Made in Belgium
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Literature/Schematics (1) - - Manufacturers Literature (Service Manual CD65DX)
