Digital Synthesized Tuner ST-530L

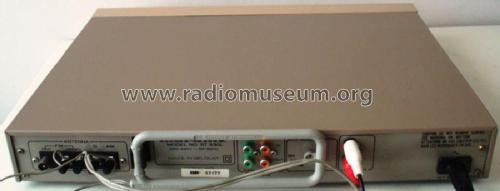

Digital Synthesized Tuner ST-530L; Marantz Sound United (ID = 1968408) Radio Digital Synthesized Tuner ST-530L; Marantz Sound United (ID = 1968409) Radio
Use red slider bar for more.
Digital Synthesized Tuner ST-530L; Marantz Sound United (ID = 1968408) Radio
Marantz Sound United: Digital Synthesized Tuner ST-530L [Radio] ID = 1968408 1400x342
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Synthesized Tuner ST-530L, Marantz (Sound United LLC); Vista, CA:
Ebay item no. 111853207886 seller christo.0612

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-120; 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Digital Synthesized Tuner ST-530L - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 55 x 300 mm / 16.4 x 2.2 x 11.8 inch
Notes

Digital monitoring tuner. AM/FM digital synthesizer. Dual gate MOSFET front end with twin varactor type tuning stage.

8 AM and 8 FM presets. Preset memory battery back-up. Automatic station scanning and automatic preset scanning. Record programmable:  one can programme up to six stations which can be recorded alternatively during ones absense. Last station memory. AM detachable loop antenna. Remote Controllable with Digital BUS system by connection to the RC430 Remote Control Receiver.

Similar to the Marantz ST-530 model which has MW and FM only.

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Mentioned in -- Original prospect or advert (Marantz 1983/4 catalogue)

Model page created by Howard Craven. See "Data change" for further contributors.
