High Definition Speaker System HD660 Early

High Definition Speaker System HD660; Marantz Sound United (ID = 2414965) Speaker-P High Definition Speaker System HD660; Marantz Sound United (ID = 2414964) Speaker-P

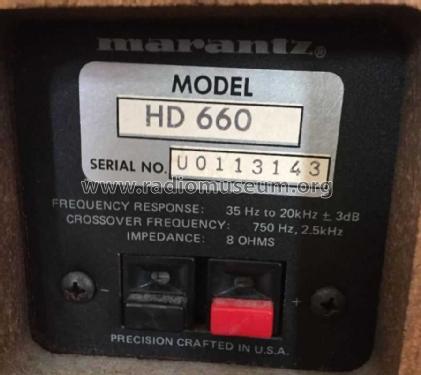

High Definition Speaker System HD660; Marantz Sound United (ID = 2414966) Speaker-P High Definition Speaker System HD660; Marantz Sound United (ID = 2414968) Speaker-P
High Definition Speaker System HD660; Marantz Sound United (ID = 2414967) Speaker-P
Use red slider bar for more.
High Definition Speaker System HD660; Marantz Sound United (ID = 2414965) Speaker-P
Marantz Sound United: High Definition Speaker System HD660 [Speaker-P] ID = 2414965 900x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model High Definition Speaker System HD660 Early, Marantz (Sound United LLC); Vista, CA:
Early Marantz hd660 loudspeakers. Sold on Canuck Audio Mart item 649413362 seller bordik67

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: High Definition Speaker System HD660 [Early] - Marantz Sound United LLC;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 350 x 650 x 270 mm / 13.8 x 25.6 x 10.6 inch
Notes

3 way hi-fi floor or stand mount loudspeakers in walnut veneer wooden cabinets. With VariQ damping (a port with a removable acoustical plug) and rotary Level controls for the Midrange and Tweeter speakers.

Specification
Impedance: 8 ohms
Power handling: 125 watts
Frequency Response: 35 - 20000Hz
Crossover frequencies: 750 / 2500Hz
Driver diameters: 255mm Bass unit, 130mm Midrange unit, 40mm Tweeter.

3 Wege Standbox geschlossen.
35 - 20000Hz, 8 Ohm, Übergänge 750/2500Hz.
255mm TT, 130mm MT, 40mm HT.
Frontblende abnehmbar.

Made in the USA

See also the later Marantz HD660 loudspeaker model.

Mentioned in -- Original prospect or advert (1978 Marantz 25th Anniversary catalogue)

Model page created by Franz Scharner. See "Data change" for further contributors.
