Integrated Amplifier PM-65AV

Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011234) Ampl/Mixer Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011230) Ampl/Mixer
Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011231) Ampl/Mixer Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011232) Ampl/Mixer
Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011235) Ampl/Mixer Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011237) Ampl/Mixer
Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011238) Ampl/Mixer Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011240) Ampl/Mixer
Use red slider bar for more.
Integrated Amplifier PM-65AV; Marantz Sound United (ID = 2011234) Ampl/Mixer

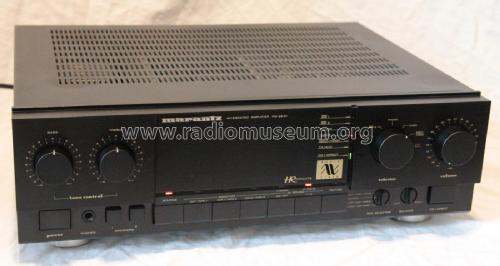

Marantz Sound United: Integrated Amplifier PM-65AV [Ampl/Mixer] ID = 2011234 1400x746
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Amplifier PM-65AV, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1988 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 150 W (undistorted)
from Radiomuseum.org Model: Integrated Amplifier PM-65AV - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 136 x 334 mm / 16.5 x 5.4 x 13.1 inch
Notes

Power output: 75 watts per channel into 8 Ohm (stereo)

Frequency response: 15Hz to 70kHz

Total harmonic distortion: 0.02%

Damping factor: 100

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 86dB (MM), 86dB (line)

Video Connections: composite

Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
