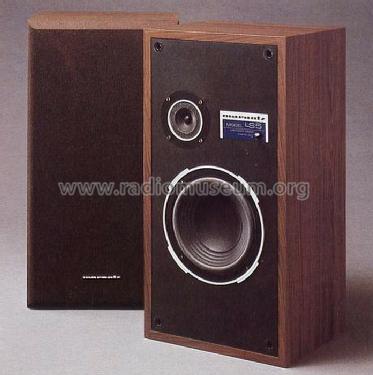

Marantz Sound United: LS-5 [Speaker-P] ID = 671151 697x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model LS-5, Marantz (Sound United LLC); Vista, CA:
Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Model: LS-5 - Marantz Sound United LLC;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 305 x 584 x 241 mm / 12 x 23 x 9.5 inch
Notes 2-Wege Box, 40 Watt Musikleistung, 8 Ohm.
Schalldruck 88dB/W/m, Übergangsfrequenz bei 2.500Hz.
8-inch TT, 1.75-inch HT.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
