MW/LW/FM Stereo Tuner ST300L (ST-300L)

MW/LW/FM Stereo Tuner ST300L ; Marantz; Itasca (ID = 2379454) Radio MW/LW/FM Stereo Tuner ST300L ; Marantz; Itasca (ID = 2379455) Radio
Use red slider bar for more.
MW/LW/FM Stereo Tuner ST300L ; Marantz; Itasca (ID = 2379454) Radio

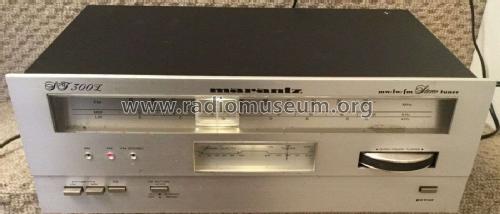

Marantz; Itasca: MW/LW/FM Stereo Tuner ST300L [Radio] ID = 2379454 1400x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW/LW/FM Stereo Tuner ST300L (ST-300L), Marantz; Itasca:
Ebay.uk auction item 323769792539 seller 148rufaro

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz; Itasca
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110 or 220 or 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: MW/LW/FM Stereo Tuner ST300L - Marantz; Itasca
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 416 x 146 x 243 mm / 16.4 x 5.7 x 9.6 inch
Notes

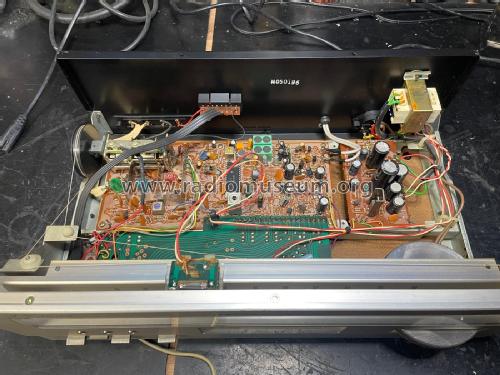

An AM/FM (MW, LW, FM) stereo hi-fi tuner. Some examples have a rack front. On the front, push buttons for Power, LW, MW, FM and FM Muting/Mode/Stereo/Mono, a Gyro-Touch tuning wheel, and two VU meters for FM Tuning and Signal Strength. On the rear, an adjustable AM antenna, connections for AM and FM aerials and a line output cable for connection to an amplifier.

Specification
FM Tuning Range ..................:  87.5 - 108 MHz
MW Tuning Range .................:  525 - 1605 kHz
LW Tuning Range ..................:  150 - 350kHz
Signal to Noise Ratio .............:  65dB/63dB (FM Mono/Stereo), 55dB (MW), 48dB (LW)
Selectivity .............................:  65dB (FM), 46dB (MW), 24dB (LW)
Sensitivity .............................:  0.9 µV (Mono), 24µV (Stereo), 25µV (MW), 200µV (LW)

Versions/Power Requirements
220/240 V AC 50Hz with 2 position voltage selector
110/220 V AC 50Hz with 2 position voltage selector

Similar to the Marantz ST300 AM/FM Stereo Tuner which does not have LW.

Designed in USA Made in Japan





Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Mentioned in - - Manufacturers Literature (1980 Marantz Hi-Fi catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Owner's Manual for the ST-300 ST300L ST400 ST400L Stereophonic Tuners)
Literature/Schematics (2) - - Manufacturers Literature (Schematic dated 1979-3)

Model page created by Howard Craven. See "Data change" for further contributors.
