SR8001

SR8001; Marantz Japan Inc; (ID = 2415049) Ampl/Mixer SR8001; Marantz Japan Inc; (ID = 2415051) Ampl/Mixer
SR8001; Marantz Japan Inc; (ID = 2415052) Ampl/Mixer SR8001; Marantz Japan Inc; (ID = 2415053) Ampl/Mixer
Use red slider bar for more.

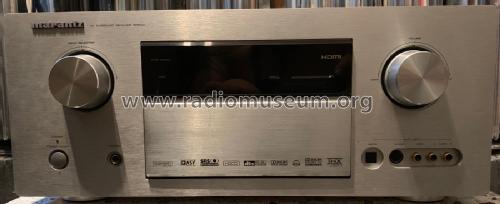

SR8001; Marantz Japan Inc; (ID = 2415049) Ampl/Mixer
Marantz Japan Inc;: SR8001 [Ampl/Mixer] ID = 2415049 1400x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR8001, Marantz Japan Inc; Sagamihara

Country:  Japan
Manufacturer / Brand:  Marantz Japan Inc; Sagamihara
Year: 2006/2007 ? Category: Audio Amplifier or -mixer
Main principle Audio-Amplification
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 875 W (max.)
from Radiomuseum.org Model: SR8001 - Marantz Japan Inc; Sagamihara
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 184 x 396 mm / 17.3 x 7.2 x 15.6 inch
Notes

Tuning range: FM, MW
Power output: 125 watts per channel into 8Ω (stereo)-total 7 channels
Surround output: 125W (front), 125W (center), 125W (rear)
Frequency response: 8Hz to 100kHz
Total harmonic distortion: 0.08%
Input sensitivity: 168mV (line)
Signal to noise ratio: 105dB (line)
Speaker load impedance: 8Ω (minimum)
Digital inputs: coaxial, optical
Video Connections: HDMI, component, composite, SVHS

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.



All listed radios etc. from Marantz Japan Inc; Sagamihara
Here you find 110 models, 106 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
