FM/MW/LW Stereo Tuner ST 583L

Marantz (Sound United LLC); Vista, CA

Data
Forum
Pictures
Collections

  • Year
  • 1989 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 263292

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM/MW/LW Stereo Tuner ST 583L - Marantz Sound United LLC;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 60 x 320 mm / 14.2 x 2.4 x 12.6 inch
  • Notes

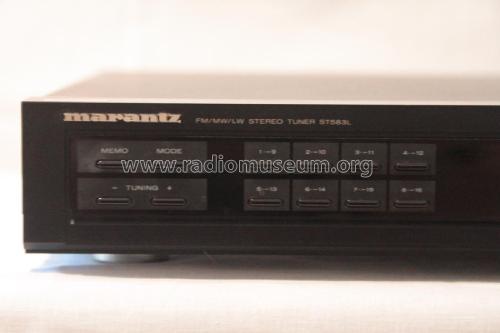

  • The ST583 is an AM/FM/LW tuner with drift free synthesizer tuning and station presets.

    Automatic scan tuning gives quick and easy location of stations, while a clear 7-digit fluorescent display gives details of the received frequency, station preset, a tuned indicator and stereo beacon.

    The tuner offers one touch connection to the PM583 master amplifier.

    FM Tuning Range: 87.5 to 108 MHz

    MW Tuning Range: 531 to 1602 kHz

    LW Tuning Range: 153 to 281 kHz

    Sensitivity: 1.0uV (FM), 500uV (MW), 1000uV (LW)

    Signal to Noise Ratio: 73dB (FM)

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Author
  • Model page created by Bartosz Szwed. See "Data change" for further contributors.
