Console Stereo Amplifier 1070

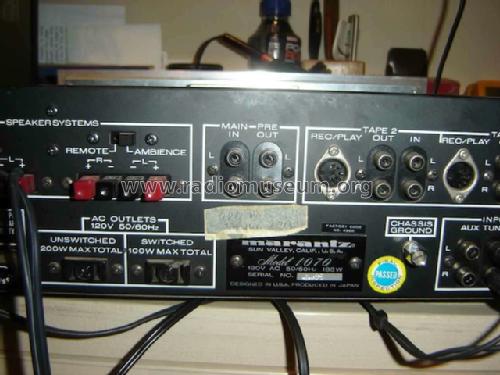

Console Stereo Amplifier 1070; Marantz Sound United (ID = 1560153) Ampl/Mixer Console Stereo Amplifier 1070; Marantz Sound United (ID = 1560154) Ampl/Mixer
Use red slider bar for more.
Console Stereo Amplifier 1070; Marantz Sound United (ID = 1560153) Ampl/Mixer
Marantz Sound United: Console Stereo Amplifier 1070 [Ampl/Mixer] ID = 1560153 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Console Stereo Amplifier 1070, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1976–1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 24:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker
Power out 100 W (undistorted)
from Radiomuseum.org Model: Console Stereo Amplifier 1070 - Marantz Sound United LLC;
Material Metal case
Shape Rack
Dimensions (WHD) 360 x 120 x 290 mm / 14.2 x 4.7 x 11.4 inch
Notes

2 x 50W an 8 Ohm (DIN), 7....78000Hz.

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 200.00 US$
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) - - Manufacturers Literature
Literature/Schematics (2) - - Manufacturers Literature

Model page created by Jorge Cifuentes. See "Data change" for further contributors.



All listed radios etc. from Marantz (Sound United LLC); Vista, CA
Here you find 538 models, 529 with images and 84 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Marantz Sound United: Console Stereo Amplifier 1070
Threads: 1 | Posts: 1
Hits: 1962     Replies: 0
marantz: 1070; Stereo Amplifier
Jorge Cifuentes
12.Nov.13
  1

Model 1070 Marantz Console Stereo Amplifier

35 watts/canal en 8 ohm

Entradas: Tuner, Aux, Phono

Salida para dos pares de parlantes: A, B, A+B

Tape Monitor 1 & 2




Marantz Sound United: Console Stereo Amplifier 1070
