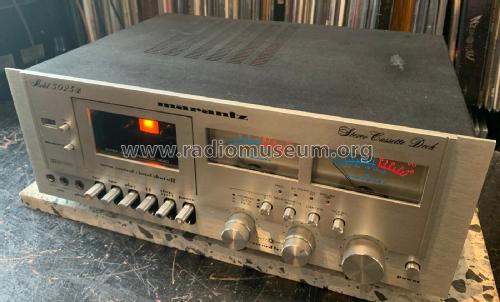

Marantz Sound United: Stereo Cassette Deck 5025 [R-Player] ID = 2512202 1400x847
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Cassette Deck 5025 (5025 B) All, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978–1980 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Cassette Deck 5025 [All] - Marantz Sound United LLC;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 146 x 297 mm / 17.3 x 5.7 x 11.7 inch
Notes

Marantz 5025, Stereo Cassette Deck, servo control & total shut off;

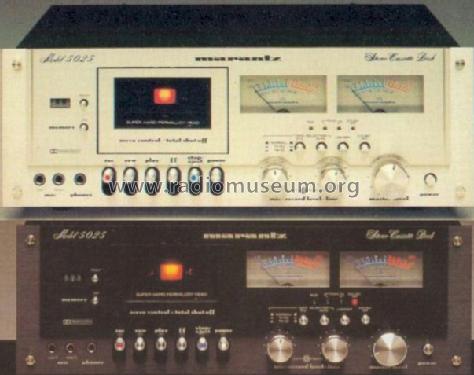

FeCr bias, response 40 Hz - 17.5 kHz, 2 VU meters, Dolby NR, built-in mixer, tape counter with memory, type 5025 B as component (19-inch) version with optional handles type RHA-2, headphones & 2 x mic. jack, gold or black finish, probably different power supply versions.

Style: Front Load
Tape Drive System: Single Capstan Drive
Track System: Compatible Stereo 4 Track 2 Channel
Tape speed: 4.75cm/s
Head: R/P - Super Hard Permalloy, Erase - Ferrite
Motor: DC Servo Controlled Motor
Meters: VU Type x 2
Recording System: AC Bias
Erasing System: AC Erase
Overall Frequency Response (Dolby OFF):
Ferric Oxide Tape: 40Hz to 15.5kHz +2.5dB, - 3.5dB
Chrome Tape: 40Hz to 17kHz +2.5dB, - 3.5dB
Ferric-Chrome Tape: 40Hz to 18kHz +2.5dB, - 3.5dB
Total Harmonic Distortion:
Ferric Oxide Tape: 1%
Chrome Tape: 1.8%
Ferric-Chrome Tape: 1.8%
Wow and Flutter (DIN 45511 WTD Play Back): 0.12%
Fast Rewind Time (C-60): 105s
Fast Forward (C-60): 105s



Model 5025B
Dimensions WHD: 416x146x297mm



Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Source of data -- Original prospect or advert
