Stereo Console Amplifier SC1000

Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439879) Ampl/Mixer Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439880) Ampl/Mixer
Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439881) Ampl/Mixer Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439882) Ampl/Mixer
Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439883) Ampl/Mixer Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439884) Ampl/Mixer
Use red slider bar for more.
Stereo Console Amplifier SC1000; Marantz Sound United (ID = 2439879) Ampl/Mixer
Marantz Sound United: Stereo Console Amplifier SC1000 [Ampl/Mixer] ID = 2439879 1400x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Console Amplifier SC1000, Marantz (Sound United LLC); Vista, CA:
Ebay UK auction item_113740361233 seller legendary_audio

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1983 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 110; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo Console Amplifier SC1000 - Marantz Sound United LLC;
Material Metal case
Shape Rack
Dimensions (WHD) 483 x 117.5 x 441 mm / 19 x 4.6 x 17.4 inch
Notes

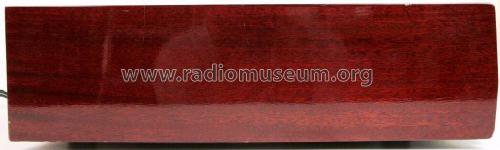

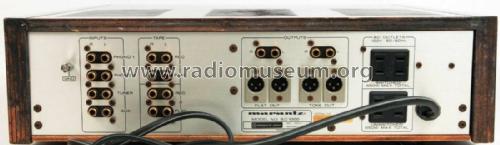

A stereo hi-fi preamplifier housed in a metal case for rack mounting (optional wooden case on the Japanese model). Optional rack handles. With RCA input sockets for MM Phono 1, MM Phono 2, Tuner and Aux, RCA Input/Output sockets for 2 tape recorders, 2 RCA output sockets and 2 Cannon output sockets (Flat Out, Tone Out) for connection to a power amplifier and 1 switched and 1 unswitched AC outlet. Rotary Output Level control and Input Selector switch, tape monitor switch, push button switches for Treble and Bass, Rec Out, Tape Copy, Subsonic filter and Phono 1 cartridge load.

Specification
MM Cartridge Input

Frequency Response (RIAA 20Hz to 20kHz)       ±0.2dB
Signal-to-Noise Ratio "A" Weighted 7.75mV input) 90dB
Input Impedance
  Phono 1              47kΩ, 100kΩ
  Phono 2              47kΩ
Input Sensitivity     2.5mV
Input Equivalent Noise "A" Weighted   0.15µV
Aux. Input
Input Impedance    47kΩ
Input Sensitivity     150mV
Frequency Response (Flat out +0, -0.2dB)   10Hz-100kHz
Signal-to-Noise Ratio (IHF-A 7.75mV input)  100 dB
Output Voltage
Record Output      150mV
Preamp Output     1.5V max.
Output Impedance
Record Output      50Ω
Preamp Output     50Ω

Versions/Power Requirements
Suffix C / 120V AC 60Hz
Suffix E / 220V AC with voltage selector 110/120/220/240V AC 50/60Hz
Suffix P / 120V AC with voltage selector 110/120/220/240V AC 50/60Hz
Suffix A / 240V AC with voltage selector 110/120/220/240V AC 50/60Hz
Japan   / 100V AC 50/60Hz

See also the matching Marantz SM1000 Stereo Power Amplifier.

Made in Japan.

Net weight (2.2 lb = 1 kg) 13.6 kg / 29 lb 15.3 oz (29.956 lb)
Mentioned in -- Original prospect or advert (Marantz 1983-84 Hi-Fi catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Owner's manual model SC1000 Stereo Console Amplifier)

Model page created by Howard Craven. See "Data change" for further contributors.
