Stereo Control Amplifier SC-7
Use red slider bar for more.

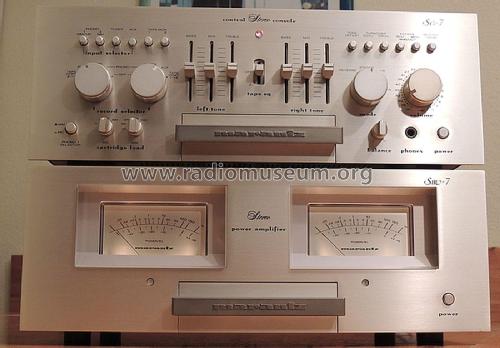

Marantz Sound United: Stereo Control Amplifier SC-7 [Ampl/Mixer] ID = 2033956 1400x976
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Control Amplifier SC-7, Marantz (Sound United LLC); Vista, CA:
Ebay Auction
|
|
Year:
1980
|
Category: Audio Amplifier or -mixer |
Semiconductors (the count is only for transistors) |
Semiconductors present.
|
Main principle |
Audio-Amplification
|
Wave bands |
- without |
Details |
Hi-Fi equipment |
Power type and voltage |
Alternating Current supply (AC) / 110/120/220/240 Volt |
Loudspeaker |
- For headphones or amp. |
Power out |
|
from Radiomuseum.org |
Model: Stereo Control Amplifier SC-7 - Marantz Sound United LLC; |
Material |
Metal case |
Shape |
Book-shelf unit. |
Dimensions (WHD) |
416 x 146 x 244 mm / 16.4 x 5.7 x 9.6 inch |
Notes |
Marantz Stereo Control Amplifier Model SC-7.
Frequency response: 4Hz to 120kHz
Total harmonic distortion: 0.004%
Input sensitivity: 0.2mV (MC), 2mV (MM), 150mV (line)
Output: 1.5V (Pre out)
Power Consumption 40 Watts
AC Outlets same as Line Voltage:
1x Switched max. 500 Watts
1x Unswitched max 400 Watts
Available in:
Metallic Gold or Metallic Black |
Net weight (2.2 lb = 1 kg) |
10 kg / 22 lb 0.4 oz (22.026 lb) |
Mentioned in |
-- Original prospect or advert (Marantz Product Catalogue - The Goldsmiths) |
Model page created by Franz Scharner. See "Data change" for further contributors.
