• Country
• United States of America (USA)

• Manufacturer / Brand
• Marantz (Sound United LLC); Vista, CA

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198757

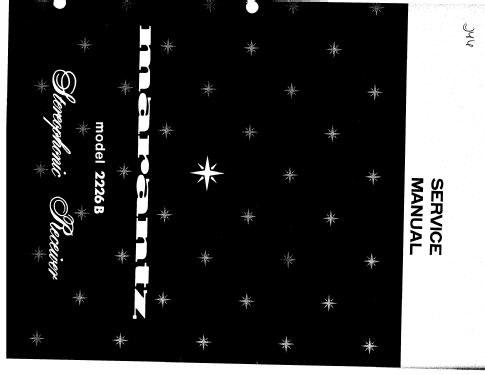

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereophonic Receiver 2226B - Marantz Sound United LLC;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 140 x 170 mm / 16.7 x 5.5 x 6.7 inch

• Notes
• Eingänge für: Phono, Aux, 2x Tape, Monitor. Als Vor-Endstufe auftrennbar. Vier Lautsprecherausgänge. Unterschied zum 2226 (ID = 122542), Balanceregler nicht mehr als Schieberegler sondern als Drehregler. Keine AC-Ausgänge mehr.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
