Stereophonic receiver 2245

Stereophonic receiver 2245; Marantz Sound United (ID = 744761) Radio

Stereophonic receiver 2245; Marantz Sound United (ID = 744762) Radio

Stereophonic receiver 2245; Marantz Sound United (ID = 2030271) Radio
Stereophonic receiver 2245; Marantz Sound United (ID = 2109128) Radio Stereophonic receiver 2245; Marantz Sound United (ID = 548683) Radio
Stereophonic receiver 2245; Marantz Sound United (ID = 1141744) Radio Stereophonic receiver 2245; Marantz Sound United (ID = 1607760) Radio
Stereophonic receiver 2245; Marantz Sound United (ID = 1607761) Radio Stereophonic receiver 2245; Marantz Sound United (ID = 1607762) Radio
Stereophonic receiver 2245; Marantz Sound United (ID = 1607763) Radio Stereophonic receiver 2245; Marantz Sound United (ID = 1607764) Radio
Stereophonic receiver 2245; Marantz Sound United (ID = 1607765) Radio
Use red slider bar for more.
Stereophonic receiver 2245; Marantz Sound United (ID = 2109128) Radio
Marantz Sound United: Stereophonic receiver 2245 [Radio] ID = 2109128 1400x503
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereophonic receiver 2245, Marantz (Sound United LLC); Vista, CA:
Aus privater Sammlung

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1972–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 84: TA7060
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (135 W max.)
from Radiomuseum.org Model: Stereophonic receiver 2245 - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 147 x 410 mm / 17.3 x 5.8 x 16.1 inch
Notes

Blue face series receiver 2 x 45 watts, "gyro tuning".

1 IC (TA7060P, driver amp. for FM-Detector)

Output 2 x 45 W into 4 to 8 Ohms; 2 x 25 W into 16 Ohms
Power Bandwidth for 0.3 % THD 7 - 70'000 Hz
Damping Factor >45
Channel Separation >35 dB
High Level S/N Ratio -80 dB

Total Distortion at rated output
- Intermodulation 0.3 %
- Harmonic 0.3 %

Made in Japan

Net weight (2.2 lb = 1 kg) 34.5 lb (34 lb 8 oz) / 15.663 kg

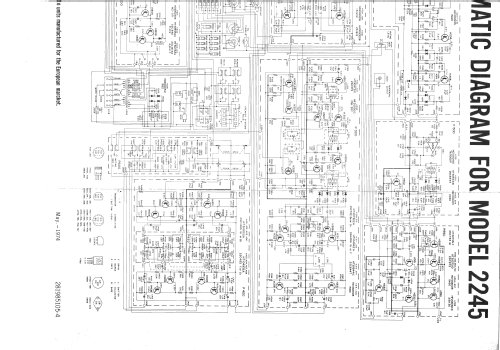

Source of data -- Schematic

Model page created by Urs Gloor. See "Data change" for further contributors.
