Stereophonic Receiver 2265B

Stereophonic Receiver 2265B; Marantz Sound United (ID = 1850751) Radio Stereophonic Receiver 2265B; Marantz Sound United (ID = 222574) Radio
Stereophonic Receiver 2265B; Marantz Sound United (ID = 222575) Radio Stereophonic Receiver 2265B; Marantz Sound United (ID = 548676) Radio
Stereophonic Receiver 2265B; Marantz Sound United (ID = 704290) Radio Stereophonic Receiver 2265B; Marantz Sound United (ID = 704291) Radio
Stereophonic Receiver 2265B; Marantz Sound United (ID = 704292) Radio Stereophonic Receiver 2265B; Marantz Sound United (ID = 704293) Radio
Stereophonic Receiver 2265B; Marantz Sound United (ID = 704294) Radio Stereophonic Receiver 2265B; Marantz Sound United (ID = 1814247) Radio
Use red slider bar for more.

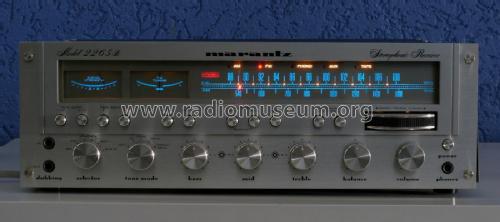

Stereophonic Receiver 2265B; Marantz Sound United (ID = 1850751) Radio
Marantz Sound United: Stereophonic Receiver 2265B [Radio] ID = 1850751 1007x379
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereophonic Receiver 2265B, Marantz (Sound United LLC); Vista, CA

Country:  United States of America (USA)
Manufacturer / Brand:  Marantz (Sound United LLC); Vista, CA
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 170 W (unknown quality)
from Radiomuseum.org Model: Stereophonic Receiver 2265B - Marantz Sound United LLC;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 150 x 400 mm / 17.3 x 5.9 x 15.7 inch
Notes Receiver mit 2 x 85 Watt, Impedance 4-8 Ohm; Endstufentransistoren: Marantz 2x D 555+2x B 600; elektronischer Endstufen Schutzschaltung; Frequency response: 20 - 40.000 Hz; 2 Lautsprecherpaare schaltbar; Filter: Loudness-Low(Subsonic)-Hi; Eingänge: Phono Mag. 1,8 mV, 47 kOhm; - Aux: 180 mV 100 kOhm; Tape: 180 mV 100 kOhm; blaue Flutlichtskala; Abstimminstrumente: Signal Strength + FM Tuning.
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 2'300.00 DM
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.
