32 Ch= 637

32 Ch= 637; Marconi marque, Cie. (ID = 1298887) Radio 32 Ch= 637; Marconi marque, Cie. (ID = 150680) Radio
32 Ch= 637; Marconi marque, Cie. (ID = 150681) Radio 32 Ch= 637; Marconi marque, Cie. (ID = 150682) Radio
32 Ch= 637; Marconi marque, Cie. (ID = 150683) Radio 32 Ch= 637; Marconi marque, Cie. (ID = 150684) Radio
32 Ch= 637; Marconi marque, Cie. (ID = 150685) Radio 32 Ch= 637; Marconi marque, Cie. (ID = 823399) Radio
32 Ch= 637; Marconi marque, Cie. (ID = 1473435) Radio 32 Ch= 637; Marconi marque, Cie. (ID = 1804445) Radio
Use red slider bar for more.
32 Ch= 637; Marconi marque, Cie. (ID = 1298887) Radio
Marconi marque, Cie.: 32 Ch= 637 [Radio] ID = 1298887 700x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model 32 Ch= 637, Marconi (marque), Cie. Fse. du Gramophone; Paris

Country:  France
Manufacturer / Brand:  Marconi (marque), Cie. Fse. du Gramophone; Paris
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7 6A8 6K7 6Q7 6F6G 5Y3
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 130; 150; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 32 Ch= 637 - Marconi marque, Cie. Fse. du

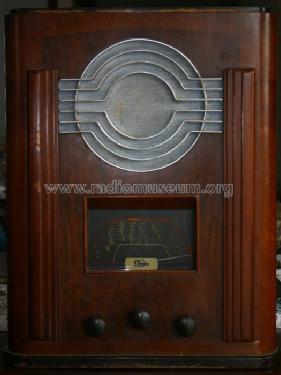

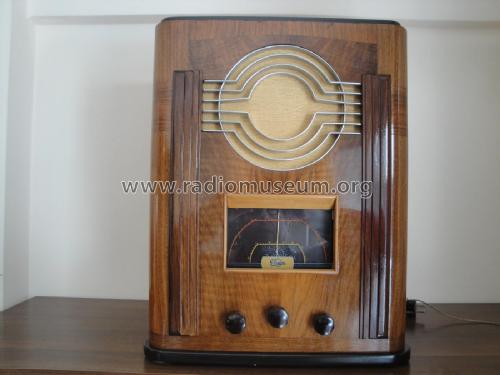

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 440 x 540 x 270 mm / 17.3 x 21.3 x 10.6 inch
Notes

Anti-fading, contrôle de tonalité; inverseur radio pick-up. Ébénisterie en noyer.

Équivalent au Pathé 6.

Ce modèle existe en deux variantes: 1re série (en-dessous du châssis no. 14.742) et 2me série (au-dessous du no. 14.742). Des données complémentaires sont actuellement pas disponibles.

Price in first year of sale 2'100.00 FRF
Mentioned in -- Original prospect or advert (Dépliant 1936)
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 5468)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
