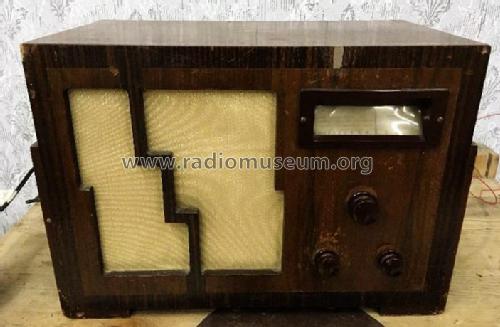

Marconi Cinq (5) 534 Ch= 155
Use red slider bar for more.
Marconi marque, Cie.: Marconi Cinq 534 Ch= 155 [Radio] ID = 1691399 906x699
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1933/1934 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 78 76 43 25Z5 0A30 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Westector |
| Main principle | Superheterodyne (common); ZF/IF 125 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 95-135 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Marconi Cinq 534 Ch= 155 - Marconi marque, Cie. Fse. du |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 420 x 290 x 240 mm / 16.5 x 11.4 x 9.4 inch |
| Notes | 2 gammes d'ondes : PO de 200 à 575 m, GO de 900 à 2000 m. Contrôle automatique du volume de son (AVC). Détection par élément Westector. Emploie une lampe auto-régulatrice. Fonctionne sur secteur 220 à 250 volts par adjonction d'un cordon chauffant. Équivalent au Pathé 53. |
| Net weight (2.2 lb = 1 kg) | 9.9 kg / 21 lb 12.9 oz (21.806 lb) |
| Price in first year of sale | 1'250.00 FRF |
| Mentioned in | -- Original prospect or advert (Publicité 1934) |
| Literature/Schematics (2) | La Nature, 1934 2ème, p.328 |
Model page created by Mark Hippenstiel. See "Data change" for further contributors.
