A.M. Signal Generator TF801D/8/S
Marconi Instruments, Marconi-Ekco (MI, MEI)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Instruments, Marconi-Ekco (MI, MEI)
- Year
- 1964
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 121501
Marconi Katalog 1970

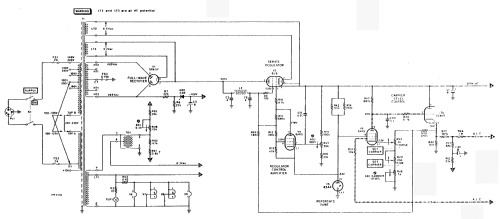

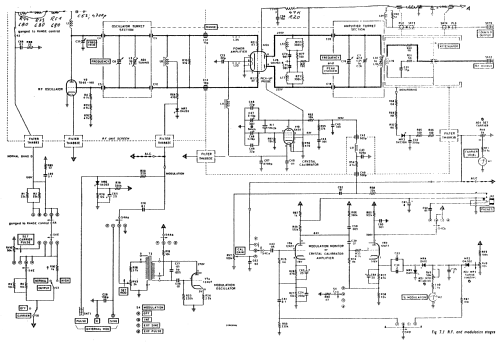

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100-150; 180-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: A.M. Signal Generator TF801D/8/S - Marconi Instruments, Marconi-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 371 x 254 mm / 23.6 x 14.6 x 10 inch
- Notes
- Frequency Range: 10 MHz to 485 MHz, Output: 0.1 µV to 1 V on 50 Ohm, Modulation: internal (1 kHz) or external (30 Hz to 50 kHz).
- Net weight (2.2 lb = 1 kg)
- 29.9 kg / 65 lb 13.7 oz (65.859 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
