F.M.Signal Generator TF1066A/2

Marconi Instruments, Marconi-Ekco (MI, MEI)

  • Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 232017

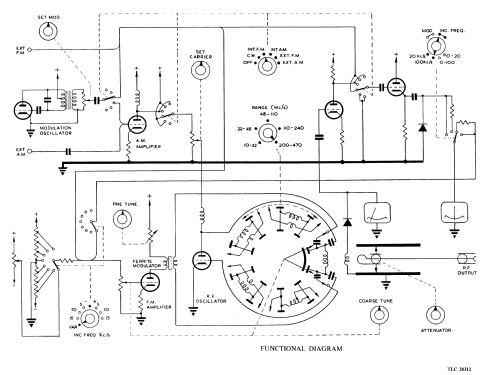

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • 4
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: F.M.Signal Generator TF1066A/2 - Marconi Instruments, Marconi-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 520 x 370 x 270 mm / 20.5 x 14.6 x 10.6 inch
  • Notes
  • Frequency Range: 10 to 470 MHz in 5 ranges:
    10...22 MHz,
    22...48 MHz,
    48...110 MHz,
    110...240 MHz,
    240...470 MHz.

    Open Circuit Output Voltage: = 0,2µV...200 mV

    Output Impedance: 50 Ohm.

    CW, AM and FM (internally and externally).

    Supply: 100-150 V; 180-250 V (40-60 Hz); 180 V 500Hz

    Speciality: ferrite FM modulator.

  • Net weight (2.2 lb = 1 kg)
  • 24.5 kg / 53 lb 15.4 oz (53.965 lb)
  • Author
  • Model page created by Adalbert Gebhart. See "Data change" for further contributors.
