5176A

Marconiphone; Belgium

Data
Forum
Pictures
Collections

  • Year
  • 1951/1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 259940

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 484 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24.3 cm = 9.6 inch
  • Power out
  • 11 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

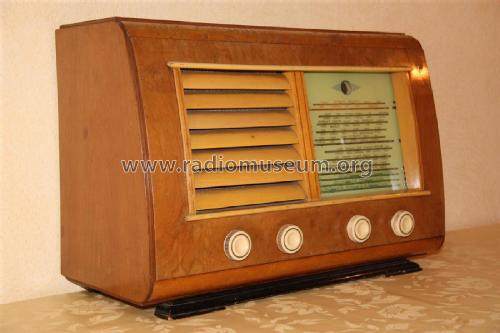

  • Model: 5176A - Marconiphone; Belgium
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 558 x 392 x 250 mm / 22 x 15.4 x 9.8 inch
  • Notes

  • AM radio Marconiphone 5176A  with 6 bands : LW, 2 x MW and 3 x SW.

    This model is based on a chassis from SBR type 991A with 7 tubes, but with 3 tubes exchanged by the manufacturer: ECH42, EF41 and EM34.

    Wavebands:

    • 13,5 - 23 m
    • 22 - 37 m
    • 36 - 53 m
    • 180 - 295 m
    • 285 - 570 m
    • 1000 - 2000 m

    Push-pull output stage with tubes 6F6G and 6AD7G.

  • Author
  • Model page created by Martin Zanders. See "Data change" for further contributors.
