M22
Use red slider bar for more.

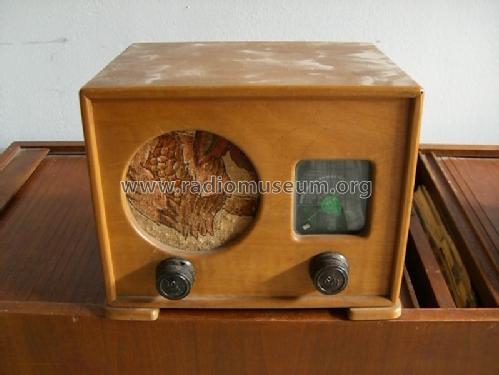

Markofon-Radio, Ing.: M22 [Radio] ID = 1716622 799x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model M22, Markofon-Radio, Ing. Markov a Spol; Brno
|
|
Year:
1936 ?
|
Category: Broadcast Receiver - or past WW2 Tuner |
Valves / Tubes |
3:
AF7 AL1 AZ1
|
Main principle |
TRF (Tuned-Radio-Frequency but use of regeneration unknown)
|
Wave bands |
Broadcast, Long Wave and Short Wave. |
Details |
|
Power type and voltage |
Alternating Current supply (AC) |
Loudspeaker |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
Power out |
|
from Radiomuseum.org |
Model: M22 - Markofon-Radio, Ing. Markov a |
Material |
Wooden case |
Shape |
Tablemodel, with any shape - general. |
Dimensions (WHD) |
387 x 304 x 235 mm / 15.2 x 12 x 9.3 inch |
Model page created by Gabriel Toth. See "Data change" for further contributors.
