M741

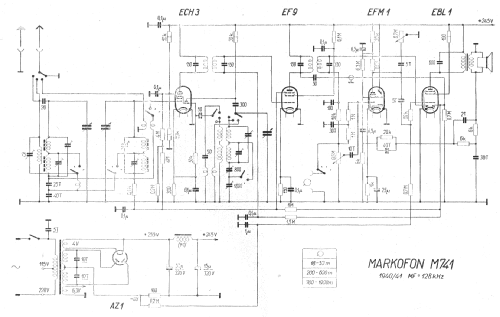

M741; Markofon-Radio, Ing. (ID = 11737) Radio
M741; Markofon-Radio, Ing. (ID = 1833679) Radio M741; Markofon-Radio, Ing. (ID = 1833680) Radio
M741; Markofon-Radio, Ing. (ID = 1833681) Radio M741; Markofon-Radio, Ing. (ID = 2487313) Radio
M741; Markofon-Radio, Ing. (ID = 2487314) Radio M741; Markofon-Radio, Ing. (ID = 2487315) Radio
M741; Markofon-Radio, Ing. (ID = 2487578) Radio M741; Markofon-Radio, Ing. (ID = 2487581) Radio
M741; Markofon-Radio, Ing. (ID = 2487584) Radio
Use red slider bar for more.
M741; Markofon-Radio, Ing. (ID = 1833679) Radio
Markofon-Radio, Ing.: M741 [Radio] ID = 1833679 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model M741, Markofon-Radio, Ing. Markov a Spol; Brno:
Image taken from polish online auction portal .allegro.pl. Auction number: 5329622172 Knobs not original

Country:  Czechoslovakia
Manufacturer / Brand:  Markofon-Radio, Ing. Markov a Spol; Brno
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBL1 AZ1 EFM1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: M741 - Markofon-Radio, Ing. Markov a
Material Wooden case
Dimensions (WHD) 495 x 355 x 240 mm / 19.5 x 14 x 9.4 inch
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947


All listed radios etc. from Markofon-Radio, Ing. Markov a Spol; Brno
Here you find 25 models, 17 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
