• Year
  • 1954 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 184176

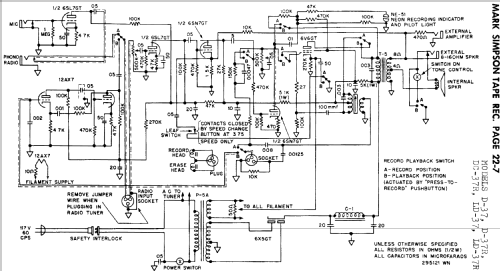

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 5 W (unknown quality)
  • from Radiomuseum.org
  • Model: LD-37 - Masco Mark Simpson Company Inc
  • Circuit diagram reference
  • Rider's Perpetual, Volume 22, covering 1951
