D516

D516; Masteradio, London (ID = 768794) Radio

D516; Masteradio, London (ID = 768796) Radio
D516; Masteradio, London (ID = 1018580) Radio D516; Masteradio, London (ID = 1018581) Radio
D516; Masteradio, London (ID = 1018582) Radio
Use red slider bar for more.
D516; Masteradio, London (ID = 1018580) Radio
Masteradio, London: D516 [Radio] ID = 1018580 933x600

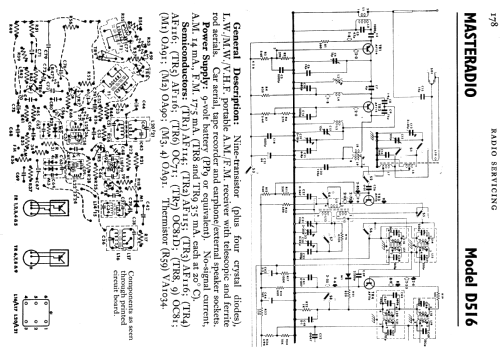

Select picture or schematic to display from thumbnails on the right and click for download.
For model D516, Masteradio, London:
A Masteradio D516 AM/FM transistor radio. Picture courtesy of Mr. Ron Bryan.

Country:  Great Britain (UK)
Manufacturer / Brand:  Masteradio, London
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF114 AF115 AF116 AF116 AF116 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: D516 - Masteradio, London
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Fitted with sockets for car aerial, tape , & earphone. Battery type PP9.
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
