National 2 Band Transistor 9 AB-210 T

National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 726740) Radio

National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 726741) Radio

National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1689607) Radio

National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1689608) Radio

National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1689609) Radio
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1300825) Radio National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1300823) Radio
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1300824) Radio National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 2297559) Radio
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 2297560) Radio National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 296738) Radio
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 296739) Radio National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 296740) Radio
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 615319) Radio National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 615321) Radio
Use red slider bar for more.
National 2 Band Transistor 9 AB-210 T; Panasonic, (ID = 1300825) Radio
Panasonic,: National 2 Band Transistor 9 AB-210 T [Radio] ID = 1300825 1400x1127
Select picture or schematic to display from thumbnails on the right and click for download.
For model National 2 Band Transistor 9 AB-210 T, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1960–1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: MC101 MC102 OC45 OC45 OC71 OC71 OC71 OC72 OC72 OA70
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.15 W (0.2 W max.)
from Radiomuseum.org Model: National 2 Band Transistor 9 AB-210 T - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.5 x 5.25 x 2 inch / 216 x 133 x 51 mm
Notes

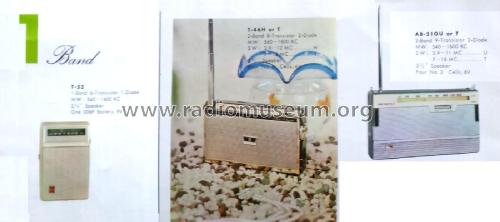

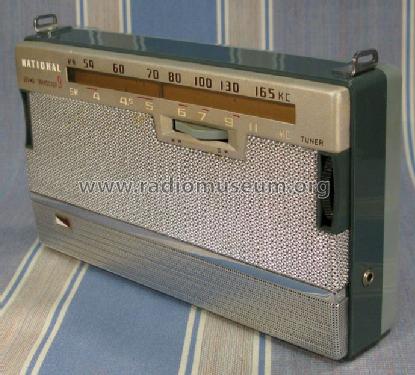

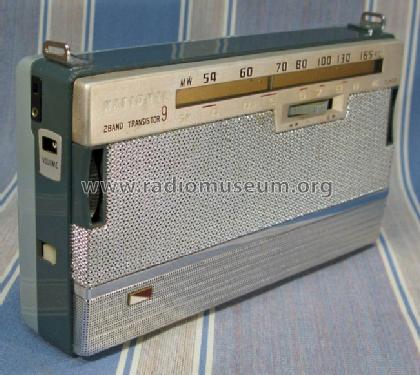

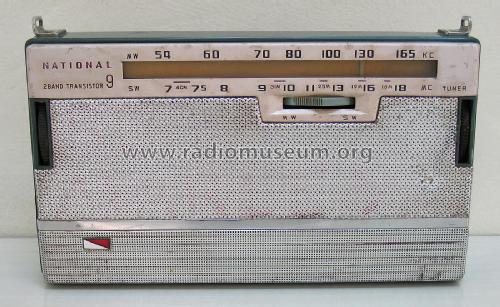

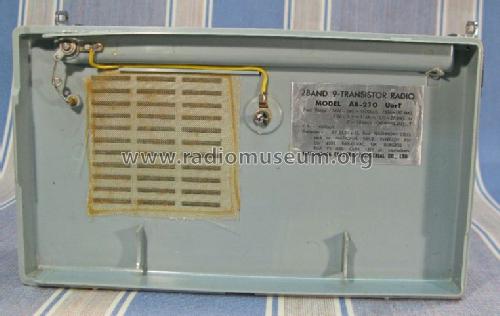

National AB-210T Transistor Portable.

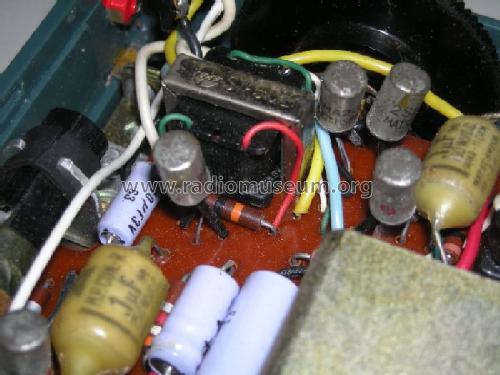

With 9 transistors and 2 diodes and operating from four 1.5V dry batteries, this model has medium wave coverage 54-1600 kC/S (kHz) and shortwave 7 -18 MC/s (MHz) and incorporates a 3½" speaker.

With leather case, earphone and 36" whip antenna. (FROM MINGAY'S PRICE SERVICE)

Similar model AB-210U has SW 3.9-11 MHz.

Sold in Australia between 1960 & 1962 for £51/9/-. Price does not include batteries.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)

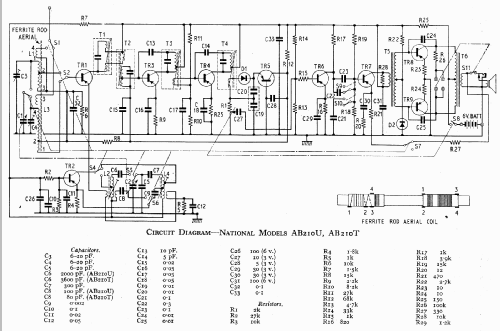

Source of data -- Schematic

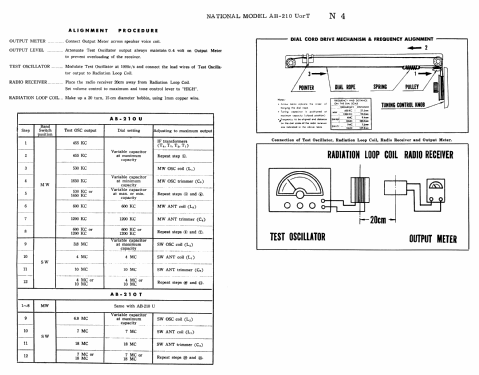

Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page N23.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (E Series Handbook, Page N4.)
Literature/Schematics (3) Mingay's Price Service (Feb 1961 to Aug 1962.)

Model page created by Howard Craven. See "Data change" for further contributors.
