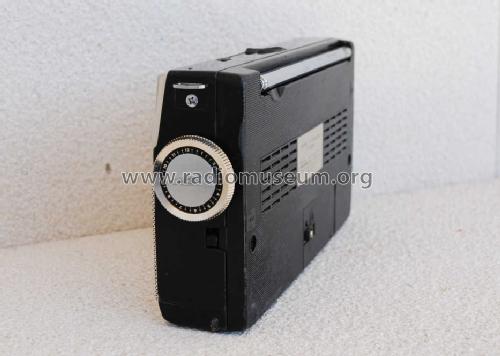

National Super Sensitive T-220J

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 193761

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / C: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Super Sensitive T-220J - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 215 x 125 x 45 mm / 8.5 x 4.9 x 1.8 inch
  • Notes

  • National Model T-220

    An all-round transistor portable with many exclusive features such as: nine transistors, one diode, dual-wave with all-new simultaneous dial with balanced fine tuning securing excellent statio selection. Highly sensitive built-in Ferrite rod antenna and 48" telescopic whip antenna. RF amplifier for clear reception of even the weakest signals. Jacks for earphone and external speaker. Dial light for tuning in the dark. Easy battery (4 x UM2 or C cells) replacement and battery memo device. Two-step tone control and large 3½" PM dynamic speaker. Complete with accessories as for Model T-44.

    Specifications: frequency range, M/W 540-1600 kC/s (kHz), S/W 6-18 MC/s (MHz). Power output 500 mW. (MINGAY'S PRICE SERVICE)

    See also National T-220H with different SW band reception.

  • Net weight (2.2 lb = 1 kg)
  • 2 lb 5 oz (2.312 lb) / 1.050 kg
  • Price in first year of sale
  • 49.35 AUS £
