National T-220H

National T-220H; Panasonic, (ID = 1730464) Radio

National T-220H; Panasonic, (ID = 1730466) Radio

National T-220H; Panasonic, (ID = 1730468) Radio

National T-220H; Panasonic, (ID = 1730470) Radio

National T-220H; Panasonic, (ID = 2530973) Radio

National T-220H; Panasonic, (ID = 2530974) Radio

National T-220H; Panasonic, (ID = 2530975) Radio

National T-220H; Panasonic, (ID = 2530976) Radio

National T-220H; Panasonic, (ID = 2530977) Radio

National T-220H; Panasonic, (ID = 2530978) Radio
National T-220H; Panasonic, (ID = 2057877) Radio National T-220H; Panasonic, (ID = 1729028) Radio
National T-220H; Panasonic, (ID = 2344705) Radio
Use red slider bar for more.
National T-220H; Panasonic, (ID = 2057877) Radio
Panasonic,: National T-220H [Radio] ID = 2057877 1395x1193
Select picture or schematic to display from thumbnails on the right and click for download.
For model National T-220H, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Foto catalogo National Panasonic

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA103 2SA103 2SA103 2SA101 2SA101 2SB173 2SB175 2SB178 2SB178 OA90
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / C: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.3 W (0.5 W max.)
from Radiomuseum.org Model: National T-220H - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Frequency Range

MW: 540 - 1600 kHz
SW: 3.9 - 12 MHz

See also National T-220J with different SW band reception.

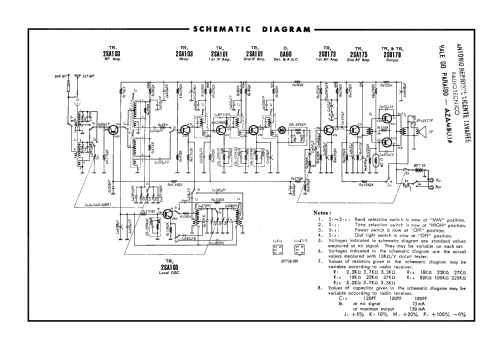

Mentioned in -- Schematic

Model page created by Daniel Rosha. See "Data change" for further contributors.
