Maxcom 7E Alert Mobile Transceiver

Maxon America Inc.; Kansas City (MO)

Data
Forum
Pictures
Collections

  • Year
  • 1981–1987 ?
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 209451

Click on the schematic thumbnail to request the schematic as a free document.

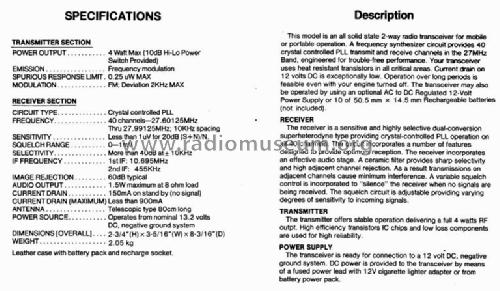

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10695/455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Batteries / addl. power jack / 13,2; 10 x 1,5, 10 x 1,2 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Maxcom 7E Alert Mobile Transceiver - Maxon America Inc.; Kansas
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 3.5 x 8 x 3.125 inch / 89 x 203 x 79 mm
  • Notes

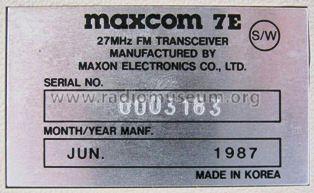

  • Maxon Electronics Co. Ltd. Maxcom 7E Alert Mobile Transceiver;
    27 MHz, FM, 40 channels, 4 W RF out, manufacturing date Jun. 1987 for at least one model.
    Sold in set complete with all necessary accessories.

    Similar chassis as Midland 77-810

    Made in Korea

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
