• Country
• United States of America (USA)

• Manufacturer / Brand
• Maxon America Inc.; Kansas City (MO)

• Year
• 1982 ?

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 268500

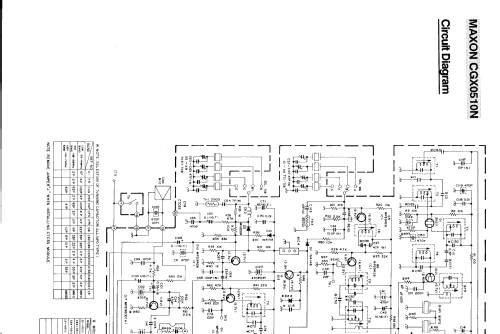

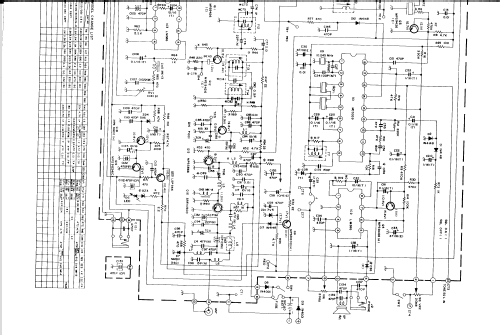

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

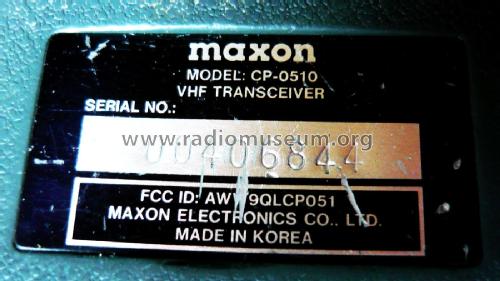

• Model: VHF Transceiver CP-0510 - Maxon America Inc.; Kansas

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 140 x 40 mm / 2.8 x 5.5 x 1.6 inch

• Notes

• 144-174 MHz, 4 Channels; 5W RF out.

  Made in Korea

• Net weight (2.2 lb = 1 kg)
• 1 lb 0 oz (1 lb) / 0.454 kg

• Author
• Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
