ERMSA 52-PB
Maymo, Escuela Radio; Barcelona etc.
- Country
- Spain
- Manufacturer / Brand
- Maymo, Escuela Radio; Barcelona etc.
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 151570
-
- alternative name: ERMSA
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material

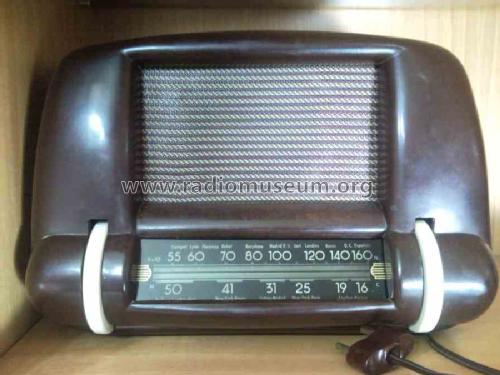

- Bakelite case
- from Radiomuseum.org
- Model: ERMSA 52-PB - Maymo, Escuela Radio;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 250 x 180 x 180 mm / 9.8 x 7.1 x 7.1 inch
- Notes
- Válvulas / tubes tipo Rimlock
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Literature/Schematics (1)

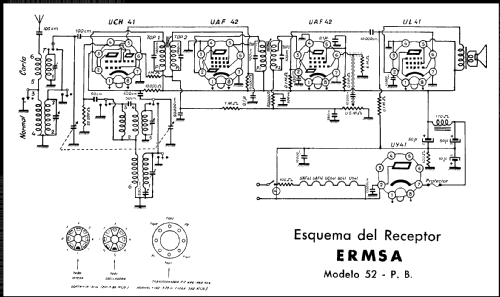

- -- Schematic (Anuncio revista Electrónica Maymo nr. 2)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
