Transistor Receiver 7905/2
MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Country
- Belgium
- Manufacturer / Brand
- MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Year
- 1960 ?
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 226429

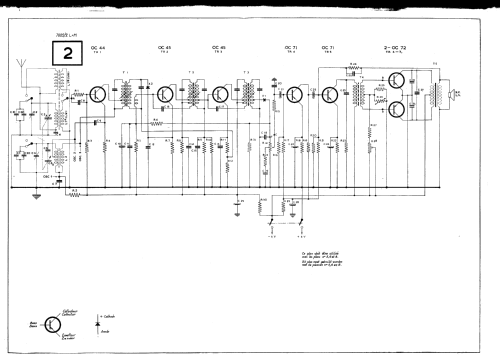

From the original construction manual.
From the original construction manual.
From the original construction manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
- Power out
- 0.2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor Receiver 7905/2 - MBLE, Manufacture Belge ... -
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
All Transistor Radio kit, based mainly on Philips components.
Batteries: Size LR20
- Price in first year of sale
- 1,260.00 BEF
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Alex Coeckelberghs. See "Data change" for further contributors.
