Mac Oscillatone S-700

Mac Oscillatone S-700; McElroy, T.R.; (ID = 1169258) Morse+TTY Mac Oscillatone S-700; McElroy, T.R.; (ID = 1169259) Morse+TTY
Mac Oscillatone S-700; McElroy, T.R.; (ID = 667445) Morse+TTY Mac Oscillatone S-700; McElroy, T.R.; (ID = 667446) Morse+TTY
Use red slider bar for more.
Mac Oscillatone S-700; McElroy, T.R.; (ID = 1169258) Morse+TTY

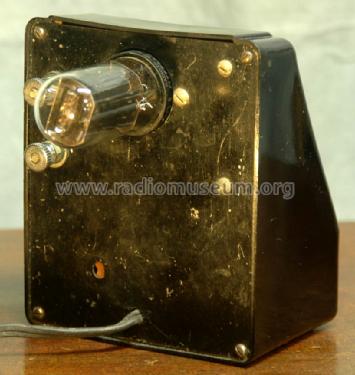

McElroy, T.R.;: Mac Oscillatone S-700 [Morse+TTY] ID = 1169258 846x888
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mac Oscillatone S-700, McElroy, T.R.; Boston MA

Country:  United States of America (USA)
Manufacturer / Brand:  McElroy, T.R.; Boston MA
Year: 1941/1942 Category: Morse-Equipment & TTY, RTTY, TDD etc.
Valves / Tubes 1: 117N7GT
Main principle none
Wave bands - without
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: Mac Oscillatone S-700 - McElroy, T.R.; Boston MA
Material Bakelite case
Shape Tablemodel, slant panel.
Dimensions (WHD) 4 x 5 x 3 inch / 102 x 127 x 76 mm
Notes We have no cover to this Allied Catalog Supplement with date 1942 but this Mac Oscillatone Code practice oscillator was offered there as Allied #76-008 to $ 5.95 (on page 136). Dimensions do not include switches or tube protruding from rear of case.
Price in first year of sale 6.00 $
Literature/Schematics (1) Allied Radio Catalog (Knight) (1942 p.136)

Model page created by Edmund H. Ramm. See "Data change" for further contributors.
