Stereophonic Preamplifier C-28
McIntosh Audio Company; Binghamton, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- McIntosh Audio Company; Binghamton, NY
- Year
- 1971
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 117768
aus ebay, Verkäufer mekons123
aus ebay, Verkäufer mekons123
aus ebay, Verkäufer mekons123
Hi-Fi Arbogen 1973 page 75 (Danmark)
- Number of Transistors
- 26
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereophonic Preamplifier C-28 - McIntosh Audio Company;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 16 x 5.44 x 13 inch / 406 x 138 x 330 mm
- Notes
-

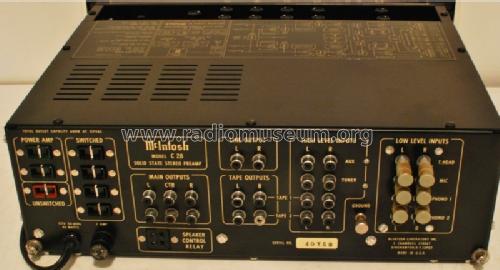

2 Phono inputs; connection for speaker selection relay SCR2 for two speaker groups.
2 Phonoeingänge, Anschlüsse für das Lautsprecherrelais SCR2 um 2 Lautsprechergruppen schalten zu können.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 649.00 $
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Fritz Dahlke. See "Data change" for further contributors.
