MC-250

• Country
• United States of America (USA)

• Manufacturer / Brand
• McIntosh Audio Company; Binghamton, NY

• Year
• 1967–1979

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 171115

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: MC-250 - McIntosh Audio Company;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15.62 x 7.062 x 10.62 inch / 397 x 179 x 270 mm

• Notes

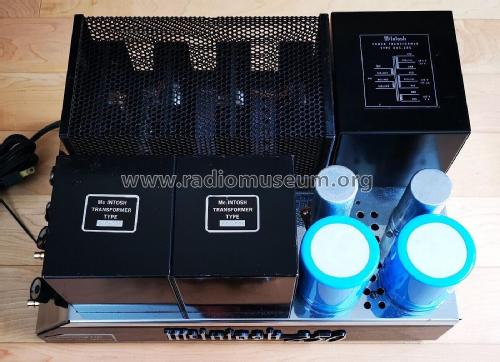

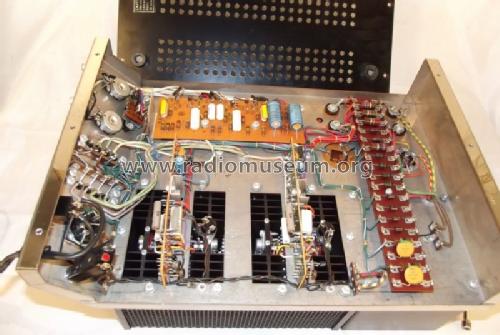

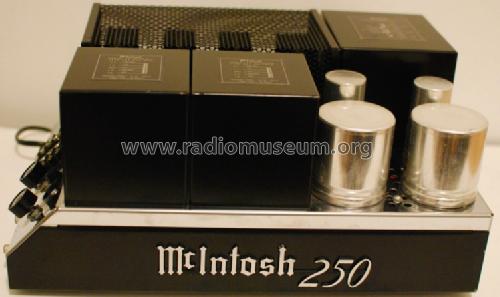

• Power Amp, stereo; early solid state with output transformers.

• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Price in first year of sale
• 429.00 $

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
