• Country
• United States of America (USA)

• Manufacturer / Brand
• McIntosh Audio Company; Binghamton, NY

• Year
• 1959–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128812

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BK7 6AB4 6AB4 6BA6 6BA6 6AU6 6AU6 6AU6 6AU6 6AL5 6BN8 6BN8 6U8 12AU7 6BE6 6BW4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

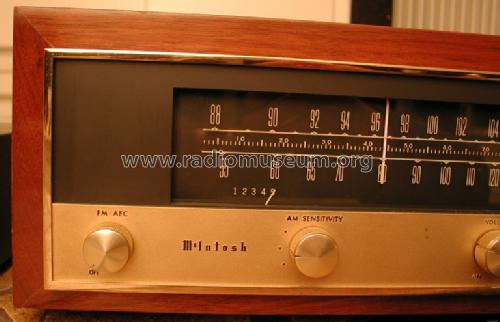

• Model: MR-55 A - McIntosh Audio Company;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.75 x 4.75 x 12 inch / 375 x 121 x 305 mm

• Notes
• Mono tuner with multiplex output; selectable AM bandwidth.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
