• Year
  • 1957–1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128813

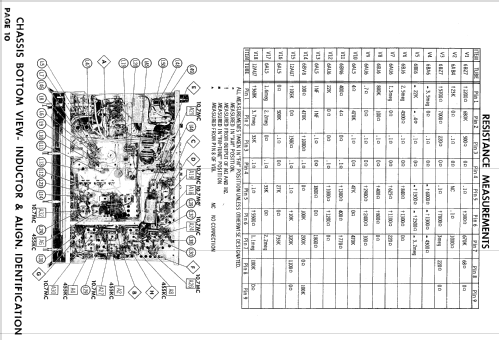

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: MR 55 - McIntosh Audio Company;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 14.75 x 4.75 x 12 inch / 375 x 121 x 305 mm
  • Notes
  • Mono tuner with multiplex output; selectable AM bandwidth.

    Optional  Cabinet for $ 25.

  • Net weight (2.2 lb = 1 kg)
  • 27 lb 0 oz (27 lb) / 12.258 kg
  • Price in first year of sale
  • 249.00 $
  • Source of data
  • -- Collector info (Sammler)
