Modern Zenegép VMG5516-02

• Country
• Hungary

• Manufacturer / Brand
• Mechanikai Laboratórium (ML); Budapest

• Year
• 1955–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83611

• Picture

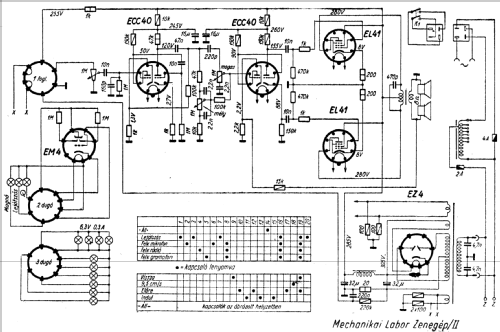

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• EF41 ECH42 EF41 ECC40 EM4 ECC40 ECC40 EL41 EL41 EZ4 6AT6 ECC40 EL41 EM4 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 473,6 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 97; 107; 127; 150; 190; 215; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 25.4 cm = 10 inch

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Modern Zenegép VMG5516-02 - Mechanikai Laboratórium ML;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1620 x 1130 x 470 mm / 63.8 x 44.5 x 18.5 inch

• Notes

• Mehrere Gehäuseausführungen; 4 × Kurzwelle; Gegentaktendstufe. Alternative tube EAF42 instead of EF41. Magnetophon: ML EHR-11. All subsystems supplied by 220V through autotrafo.

• Price in first year of sale
• (15,400.00 ?)  (HUF ?)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
