M164AX (164AX)

M164AX ; Mediator; La Chaux- (ID = 2022273) Radio

M164AX ; Mediator; La Chaux- (ID = 2022274) Radio
M164AX ; Mediator; La Chaux- (ID = 1408347) Radio M164AX ; Mediator; La Chaux- (ID = 1961) Radio
M164AX ; Mediator; La Chaux- (ID = 1142808) Radio M164AX ; Mediator; La Chaux- (ID = 1408348) Radio
M164AX ; Mediator; La Chaux- (ID = 1408351) Radio M164AX ; Mediator; La Chaux- (ID = 1408353) Radio
Use red slider bar for more.
M164AX ; Mediator; La Chaux- (ID = 1408347) Radio

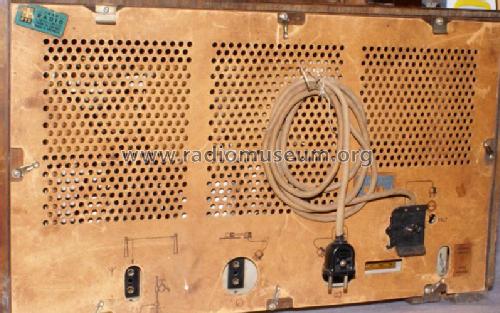

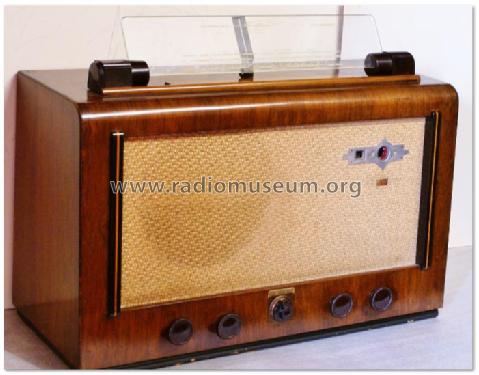

Mediator; La Chaux-: M164AX [Radio] ID = 1408347 702x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model M164AX (164AX), Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 ECH3 EBF2 EF9 EM4 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M164AX - Mediator; La Chaux-de-Fonds
Material Wooden case
Dimensions (WHD) 580 x 330 x 230 mm / 22.8 x 13 x 9.1 inch
Notes verstellb.Riesenskala oben
Price in first year of sale 565.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
