M172A/2 (172A-2 M172A-2)

M172A/2 ; Mediator; La Chaux- (ID = 2034074) Radio

M172A/2 ; Mediator; La Chaux- (ID = 2034075) Radio

M172A/2 ; Mediator; La Chaux- (ID = 2034076) Radio

M172A/2 ; Mediator; La Chaux- (ID = 2034077) Radio
M172A/2 ; Mediator; La Chaux- (ID = 1494007) Radio M172A/2 ; Mediator; La Chaux- (ID = 1494011) Radio

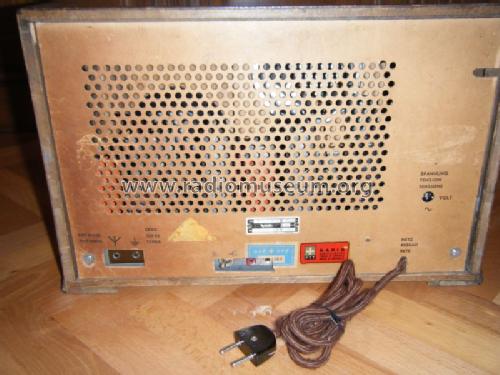

M172A/2 ; Mediator; La Chaux- (ID = 1494009) Radio M172A/2 ; Mediator; La Chaux- (ID = 1152923) Radio
M172A/2 ; Mediator; La Chaux- (ID = 1152924) Radio
Use red slider bar for more.
M172A/2 ; Mediator; La Chaux- (ID = 1494007) Radio
Mediator; La Chaux-: M172A/2 [Radio] ID = 1494007 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model M172A/2 (172A-2 M172A-2), Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1945–1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBF2 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: M172A/2 - Mediator; La Chaux-de-Fonds
Material Wooden case
Dimensions (WHD) 420 x 270 x 200 mm / 16.5 x 10.6 x 7.9 inch
Notes mit TR=Fr. 440.--
Price in first year of sale 385.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.


All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
