- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12306
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: M60A - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 490 x 303 x 220 mm / 19.3 x 11.9 x 8.7 inch
- Notes
- Holzimitation
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 230.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die Tungsram-Tabellen führen das Modell auf.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 370 models, 324 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Mediator; La Chaux-de-Fonds
Forum contributions about this model: Mediator; La Chaux-: M60A
Threads: 1 | Posts: 4
Dear collegues,
I came into possession of a "Mediator M60A" radio, (see also the "Philips 320A-16") which I put back into operation but I have no found how to select the audio signal from the phono input excluding the radio one.
Looking at the schematic I only noticed a symbol on the connection of the PU input on the volume potentiometer that could have represent the switch I was looking for, but the potentiometer does not allow any other movements other than rotation with on/off. In other radios (see Philips BX690) I had seen that pulling the knob switched to phono.
Unfortunately also the documentation present on RMorg of this and other similar models did not clarify the problem, so at the moment I don't know what else to do to solve this problem.

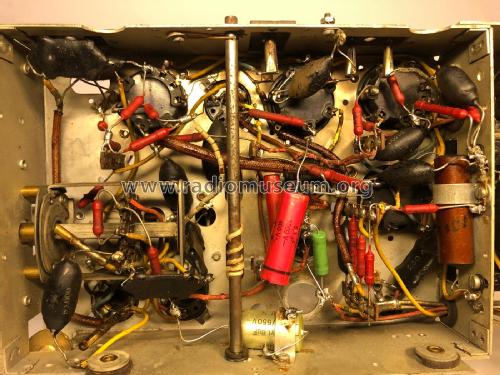

For completeness I attach the part of the circuit involved and the photo of the potentiometer and I inform you that I have published the photos of the “Mediator M60A”, collected during the restoration work.
Thank you in advance for any help you can provide me.
Best regards
Roberto (RMorg Id=23538)
Roberto Licandro, 03.Jan.24
