M73A (73A)

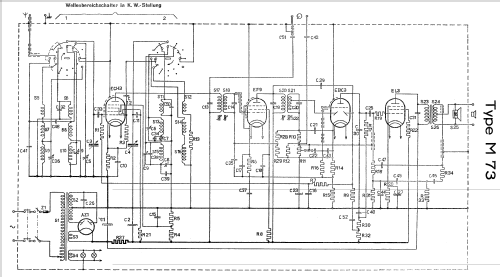

M73A ; Mediator; La Chaux- (ID = 2024783) Radio

M73A ; Mediator; La Chaux- (ID = 2024784) Radio
M73A ; Mediator; La Chaux- (ID = 1035667) Radio M73A ; Mediator; La Chaux- (ID = 1035656) Radio
M73A ; Mediator; La Chaux- (ID = 1035659) Radio M73A ; Mediator; La Chaux- (ID = 1035661) Radio
M73A ; Mediator; La Chaux- (ID = 1035663) Radio M73A ; Mediator; La Chaux- (ID = 1035664) Radio
M73A ; Mediator; La Chaux- (ID = 1035665) Radio M73A ; Mediator; La Chaux- (ID = 1035666) Radio
Use red slider bar for more.
M73A ; Mediator; La Chaux- (ID = 1035667) Radio
Mediator; La Chaux-: M73A [Radio] ID = 1035667 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model M73A (73A), Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBC3 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: M73A - Mediator; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 310 x 230 mm / 20.9 x 12.2 x 9.1 inch
Notes Mediator M73A ist ähnlich zu Modell M74A, jedoch ohne magisches Auge. Gehäuse Bakelit mit Holzfront, Skala mit Bakelit-Rahmen. La forma e le dimensioni sono simili al modello M74A (ma con mobile in bachelite e senza occhio magico).
Price in first year of sale 310.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.


All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
