MD1007U16; Mediator; La Chaux- (ID = 138836) Radio
Mediator; La Chaux-: MD1007U16 [Radio] ID = 138836 850x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD1007U16, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: MD1007U16 - Mediator; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 10.5 x 6.5 x 5 inch / 267 x 165 x 127 mm

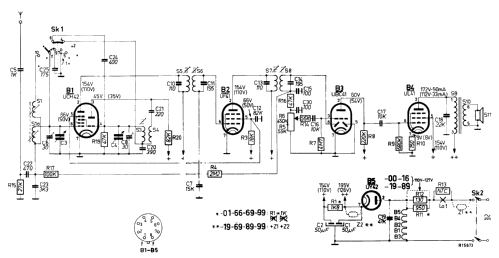

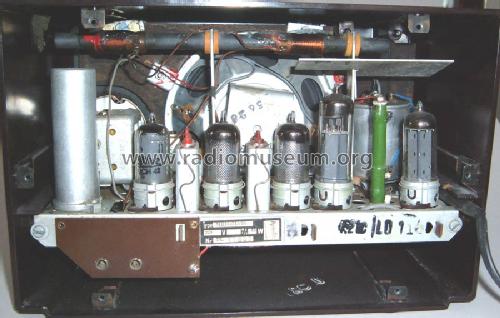

Notes Identical chassis to Philips BX156U. See this model for schematics. Gerät enthält Ferritantenne für MW und LW. Skalalampe Philips Typ 8009 D 07 (7V-0.3A)
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

Model page created by William J Blanchflower. See "Data change" for further contributors.
