MD1523U /70
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266043
aus admin.de
aus admin.de
aus admin.de
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite case
- from Radiomuseum.org
- Model: MD1523U /70 - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 290 x 200 x 160 mm / 11.4 x 7.9 x 6.3 inch
- Notes
-

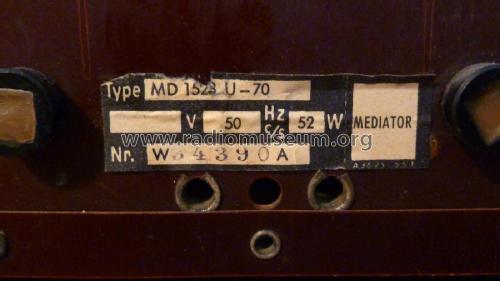

According to the type label, this Mediator model MD1523U /70 has been produced in Germany by Philips Apparatefabrik Wetzlar.
See also Stern & Stern (Conserton) MD1523U for the Swedish market.
- Author
- Model page created by Egon Strampe. See "Data change" for further contributors.
