For model MD 1567 UN, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner

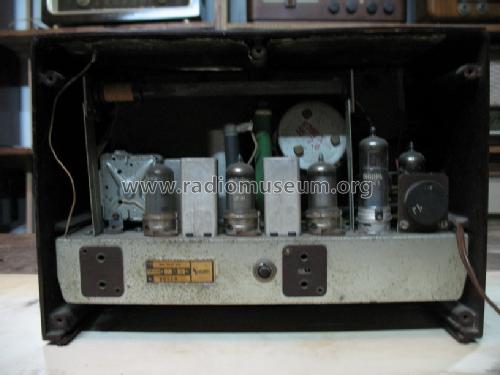

Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.1 inch = 13 cm
Power out 1.35 W (undistorted)
from Radiomuseum.org Model: MD 1567 UN - Mediator; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 305 x 215 x 150 mm / 12 x 8.5 x 5.9 inch
Notes

Mediator MD 1567 UN has a power consumption of 36 W.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 1'400.00 Escudos

Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.
