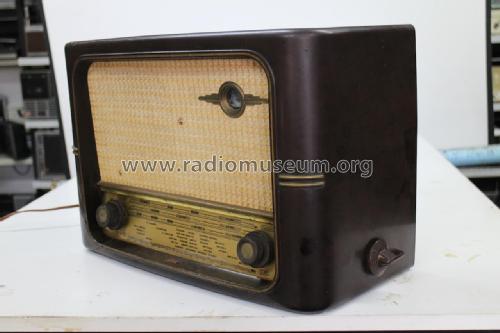

MD 2565AF
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 275030
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: MD 2565AF - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 430 x 290 x 200 mm / 16.9 x 11.4 x 7.9 inch
- Notes
-
Wave bands:
- SW1 27...15 MHz
- SW2 14...7 MHz
- SW3 7,5...2,25 MHz
- MW 1600...520 kHz
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
