MD 2569 ZF

MD 2569 ZF; Mediator; La Chaux- (ID = 1360454) Radio MD 2569 ZF; Mediator; La Chaux- (ID = 1360455) Radio
MD 2569 ZF; Mediator; La Chaux- (ID = 1360456) Radio MD 2569 ZF; Mediator; La Chaux- (ID = 1360457) Radio

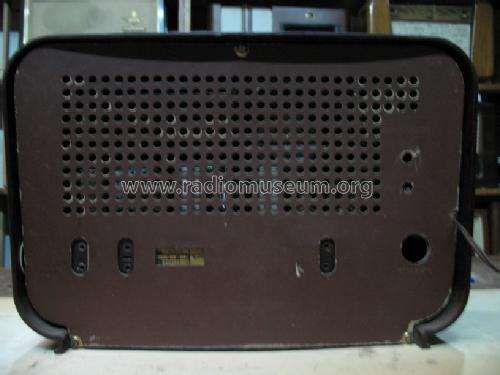

MD 2569 ZF; Mediator; La Chaux- (ID = 1360462) Radio
Use red slider bar for more.
MD 2569 ZF; Mediator; La Chaux- (ID = 1360454) Radio
Mediator; La Chaux-: MD 2569 ZF [Radio] ID = 1360454 775x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD 2569 ZF, Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL42 DM71 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 1.35 W (undistorted)
from Radiomuseum.org Model: MD 2569 ZF - Mediator; La Chaux-de-Fonds
Material Bakelite case
Dimensions (WHD) 440 x 380 x 285 mm / 17.3 x 15 x 11.2 inch

Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.



All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 350 models, 300 with images and 223 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
