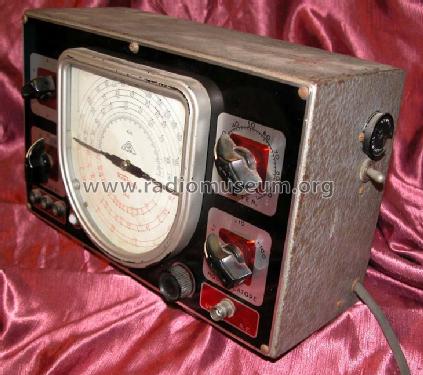

Oscillatore Modulato CB-V

Oscillatore Modulato CB-V; Mega Radio Mega (ID = 887737) Equipment
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 2435012) Equipment Oscillatore Modulato CB-V; Mega Radio Mega (ID = 2435011) Equipment
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 324532) Equipment Oscillatore Modulato CB-V; Mega Radio Mega (ID = 324533) Equipment
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 324534) Equipment Oscillatore Modulato CB-V; Mega Radio Mega (ID = 870822) Equipment
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 870823) Equipment Oscillatore Modulato CB-V; Mega Radio Mega (ID = 877311) Equipment
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 877313) Equipment Oscillatore Modulato CB-V; Mega Radio Mega (ID = 1924139) Equipment
Use red slider bar for more.
Oscillatore Modulato CB-V; Mega Radio Mega (ID = 2435012) Equipment
Mega Radio Mega: Oscillatore Modulato CB-V [Equipment] ID = 2435012 1153x951
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscillatore Modulato CB-V, Mega Radio (Mega Elettronica); Milano/Torino/Sesto Calende (VA)

Country:  Italy
Manufacturer / Brand:  Mega Radio (Mega Elettronica); Milano/Torino/Sesto Calende (VA)
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 2: 6SN7 6X4
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscillatore Modulato CB-V - Mega Radio Mega Elettronica;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 295 x 183 x 135 mm / 11.6 x 7.2 x 5.3 inch
Notes Forma parallelepipede rettangolare a sviluppo orizzontale. Oscillatore sinusoidale BF a 250/350/450/800 Hz, con livello segnale non regolabile; Oscillatore RF Modulato da 140 KHz a 30 MHz, con livello segnale regolabile, con modulazione esterna o interna con profondità di modulazione fissa.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Source of data - - Data from my own collection

Model page created by Biagio Laureti. See "Data change" for further contributors.
