• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46957

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SF7 6J7 6J7 6SC7 6V6GT 5W4GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

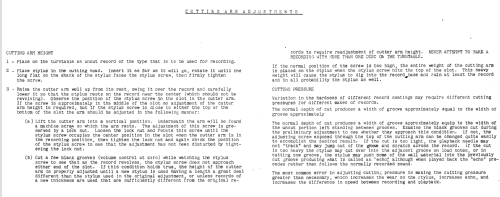

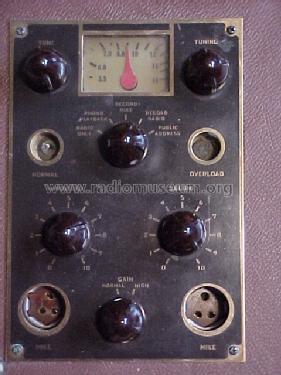

• Model: Phono-Recorder 9-1065 - Meissner Mfg. Div., Maguire

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 19.5 x 9 x 19.5 inch / 495 x 229 x 495 mm

• Notes
• Radio-Phono-Recorder-PA System -Syperheterodyne Radio- Self Contained Loop Antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 3, Folder 15)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (June 1947 page 34.)
