Électrophone 2479
Mélovox (Itax), Constructions Électriques Marbon; Paris
- Country
- France
- Manufacturer / Brand
- Mélovox (Itax), Constructions Électriques Marbon; Paris
- Year
- 1959/1960
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 221551
Service Manual

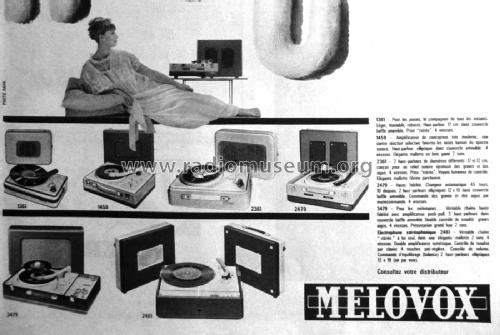

Publicité 1960
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Électrophone 2479 - Mélovox Itax, Constructions
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 410 x 180 x 330 mm / 16.1 x 7.1 x 13 inch
- Notes
-
Électrophone 2479 avec platine 4 vitesses Mélodyne à changeur automatique 45 tours. 2 HPs elliptiques de 12 x 19 cm dans le couvercle.
Mallette en bois gainé jaune/noir ou parchemin/vert.
- Net weight (2.2 lb = 1 kg)
- 9.6 kg / 21 lb 2.3 oz (21.145 lb)
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
