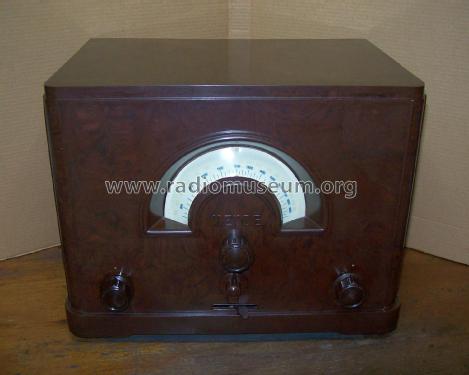

120G (120/32)

120G ; Mende - Radio H. (ID = 4482) Radio

120G ; Mende - Radio H. (ID = 23260) Radio

120G ; Mende - Radio H. (ID = 23261) Radio
120G ; Mende - Radio H. (ID = 482) Radio 120G ; Mende - Radio H. (ID = 71719) Radio
120G ; Mende - Radio H. (ID = 1391154) Radio 120G ; Mende - Radio H. (ID = 1503732) Radio
120G ; Mende - Radio H. (ID = 1730835) Radio
Use red slider bar for more.
120G ; Mende - Radio H. (ID = 482) Radio
Mende - Radio H.: 120G [Radio] ID = 482 700x512
Select picture or schematic to display from thumbnails on the right and click for download.
For model 120G (120/32), Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1932–1934 Category: Broadcast Receiver - or past WW2 Tuner

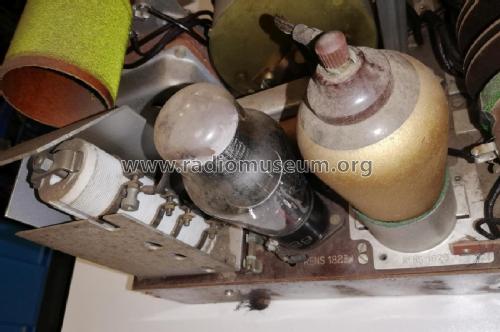

Valves / Tubes 2: RENS1820 RENS1823d
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

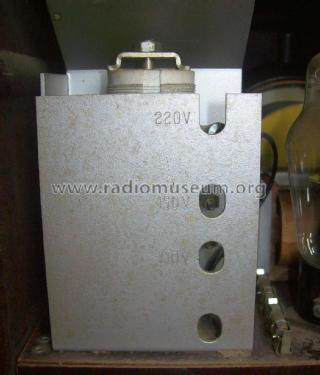

Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 120G - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 300 x 250 x 230 mm / 11.8 x 9.8 x 9.1 inch
Notes Gleiches Chassis wie 148G.
Price in first year of sale 120.00 RM !

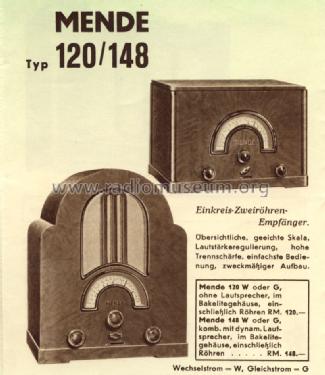

Source of data Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen

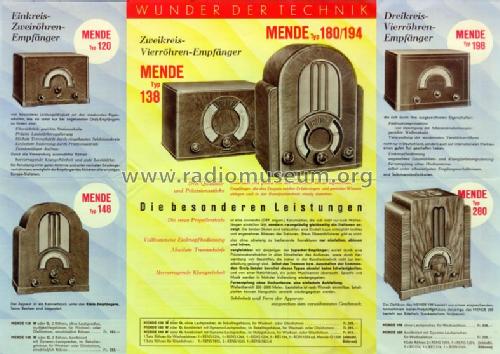

Mentioned in Radio-Zentrale Prohaska 1933/34
Literature/Schematics (1) Katalog Radio-Schnorr 1934
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
